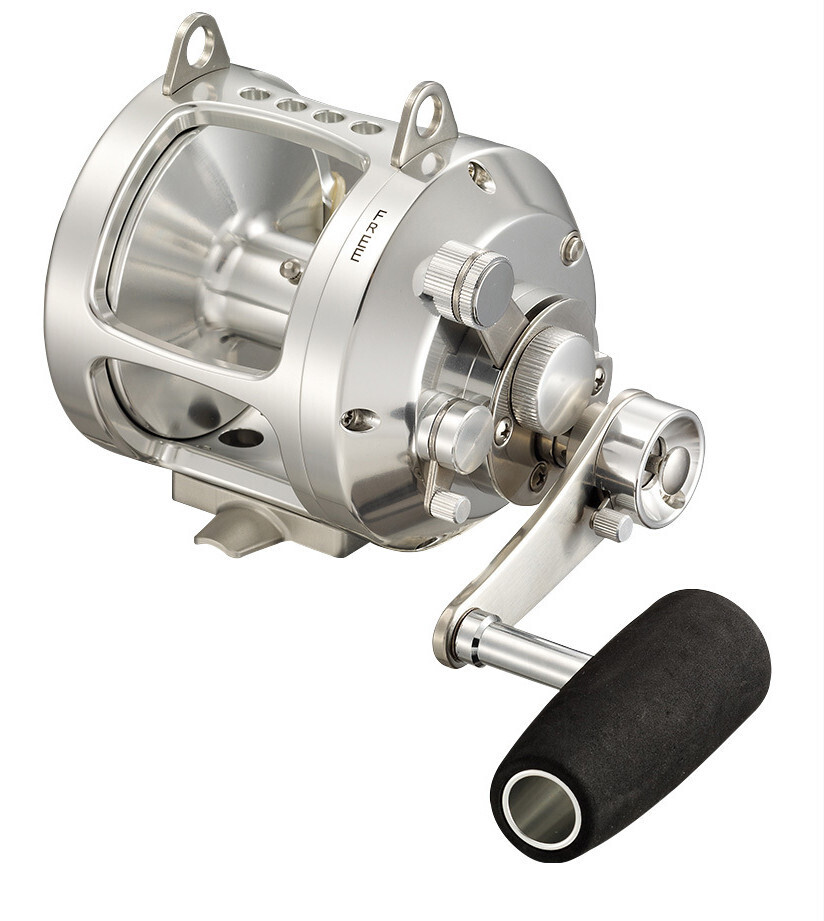

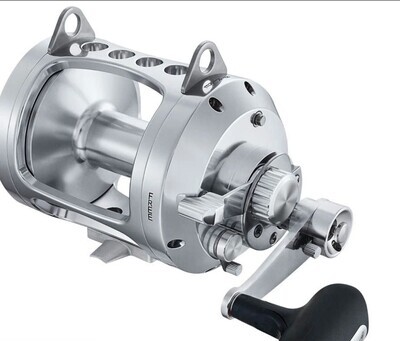

SEA EAGLE 50W

030-03-050 SE50W 3.6:1 1.3:1 50 lb 850 yds 17.50 kg 20.50 4

PRE-SET & DRAG LEVER

Maxel pre-set knob and drag lever are designed user-friendly for precise

and constant drag settings from FREE (no drag pressure), to STRIKE

(where you fight the fish), until FULL (provides extra drag pressure when

you need it). Turn the pre-set knob clockwise for more drag pressure,

counter-clockwise for less drag pressure

WARRANTY

MAXEL FISHING TACKLE CO., LTD, warrants its products to be free from defects in materials and workmanship for a period of five years from the date of purchase.

This warranty does not cover damage or malfunctions caused by accident, abuse or normal expected war.

For the fastest repair service and spare parts, please contact your local Maxel dealers. Please send it insured and include a short note describing the service you want. All shipping and insurance cost and transportation arrangements will be borne by you and are your responsibility. We will repair or replace the Product, at our option, without further cost to you, (including free return transportation and insurance). If, however, the repair is not covered by the provisions of this warranty, your Maxel product will be repaired and returned to you at a reasonable charge for labor, parts and return transportation and insurance.

- This warranty does not cover the drag washers and ball bearing of Maxel reels.

- This warranty does not cover the damages caused by transport or the incorrect use of the product.

- This warranty is not valid whenever the product has been tampered with or presents signs of unauthorised repair.

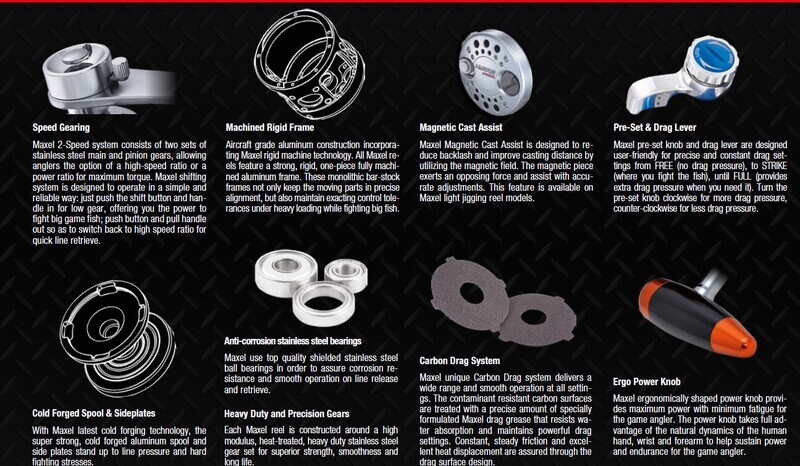

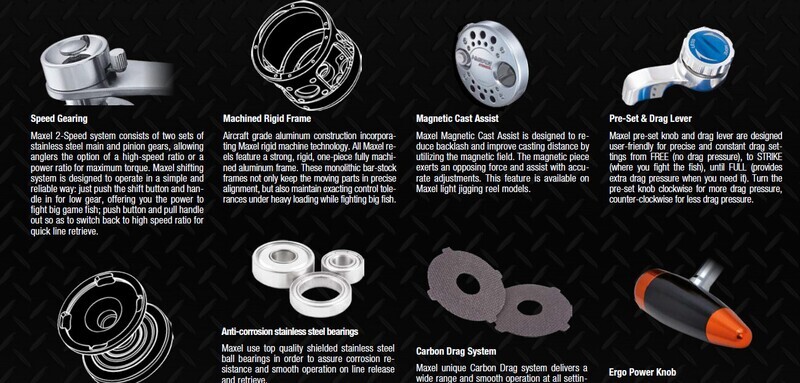

Maxel Technology

2-SPEED GEARING

Maxel 2-Speed system consists of two sets of stainless steel main and pinion gears ,allowing anglers the option of a high-speed ratio or a power ratio for maximum torque . Maxel shifting system is designed to operate in a simple and reliable way ,just push the shift button and handle in for low gear ,offering you the power to fight big game fish ; push button and pull handle out so as to switch back to high speed ratio for quick line recovery.

MACHINED RIGID FRAME

Aircraft grade aluminum construction incorporating Maxel rigid machine technology . All Maxel reels feature a strong, rigid , one-piece fully machined aluminum frame. These monolithic bar-stock frames not only keep the moving parts in precise alignment, but also maintain exacting control tolerances under heavy loading while fighting big fish

Each Maxel reel is constructed around a high modulus, heat-treated, heavy duty stainless steel gear set for superior strength, smoothness and long life.

COLD FORGED SPOOL & SIDEPLATES

With Maxel latest cold forging technology, the super strong, cold forged aluminum spool and side plates stand up to line pressure and hard fighting stresses.

GRADUAL DRAG CAM

The refined Carbon Dual Drag System , featuring the gradual drag cam with one more “M” lever position before “STRIKE” , delivers more precise lever drag adjustment as the power goes up gradually and smoothly . This helps to reduce the line breakages and losing fish on the hook.

M-POWER TORSION MECHANICS FOR IMPROVED CRANKING TORQUE

The M+ Gear Ratio has been redesigned for maximum line retrieve per crank which is more suitable for fishing with heavy jigs .That’s Maxel M-Power Torsion Mechanics as it further improves the cranking torque. And the Moderate Ratio Gear Special Adjustment maximizes the line retrieve per crank.

DUAL ANODIZED FINISH

Dual anodized aluminum finish is to get two different colors on one piece through a complicated process of machining and polishing. Every aluminum part is first thoroughly cleaned and polished before anodizing , every small details has to be controlled ensure the best and most consistent finish . The State-of-the-art anodizing is the most durable surface finish to protect against corrosion and resist scratching.
